Voice search

This guide explains how to build step by step a voice search experience using the libraries provided by Algolia. You’ll build an Android app with a classic search box and a button that triggers the voice input. To create this app, you’ll use the InstantSearch and Voice overlay libraries. Building a voice search experience has three steps:

Input using speech-to-text
Processing using Algolia
Output using speech synthesis

Speech-to-text input layer

You must have a speech-to-text layer to convert your users’ speech into something Algolia understands (Algolia can’t process non-textual searches). You can add a speech-to-text layer in two ways:

Using the Chrome browser, iOS or Android native apps, or a voice platform tool like Alexa or Google Assistant with speech-to-text built-in.
Using a third-party service. You send user speech to the service. When you receive it back, you then send it to Algolia as a search query. Some services include:

Process the query with Algolia

After converting speech to text, you need to process the query and return relevant results from your Algolia . This step involves:

Query time settings
Index configuration

Both steps help improve the search experience, especially for voice input.

Query time settings

The query time settings improve search results during query time. For instance, selecting a language for Algolia let you set certain features like ignoring “noise” words that users could enter in their search query. If you choose English as the language, and you turn on the stop words feature, the search engine ignores words like ‘a’ and ‘an’ as they’re not relevant to the search query. This gives more exact search results.

Set removeStopWords and ensure to select a supported language. For example, en for English. This setting removes stop words like “a”, “an”, or “the” before running the search query.
Send the entire query string along as optionalWords. Speech often has words that aren’t in any of your . With this setting, records don’t need to match all the words. Records matching more words rank higher. For example, in the spoken query “Show me all blue dresses”, only “blue dresses” may yield results for a clothing store: the other words should be optional.
Set ignorePlurals to true and ensure to select a supported language. For example, en for English. This setting marks words like “car” and “cars” as matching terms.
Apply analyticsTags to the query, including voice queries. You can activate these settings using the naturalLanguages parameter. These settings work well together when the query format is in natural language instead of keywords, for example, when your user performs a voice search.

Index configuration

Similarly, you can apply some rules related to your index. These rules are dynamic and apply depending on what users type in the search query. Detecting user intent can help dynamically change the search results.

Speech synthesis output

Not all voice platforms need speech synthesis or text-to-speech. For example, a site that shows search results may be enough. If your voice platform does need speech synthesis, your options are:

A built-in system such as Alexa or Google Assistant.
A third-party system. Most modern browsers support speech synthesis through the SpeechSynthesis API. If you want a wider choice of voices, you have Azure Cognitive Services or Amazon Web Services’ Polly.

Prepare your project

To use InstantSearch, you need an Algolia account. You can create a new account, or use the following credentials:

Application ID: latency
Search API Key: 1f6fd3a6fb973cb08419fe7d288fa4db
Index name: instant_search

These credentials give access to a pre-loaded dataset of products appropriate for this guide.

Create a new Android project

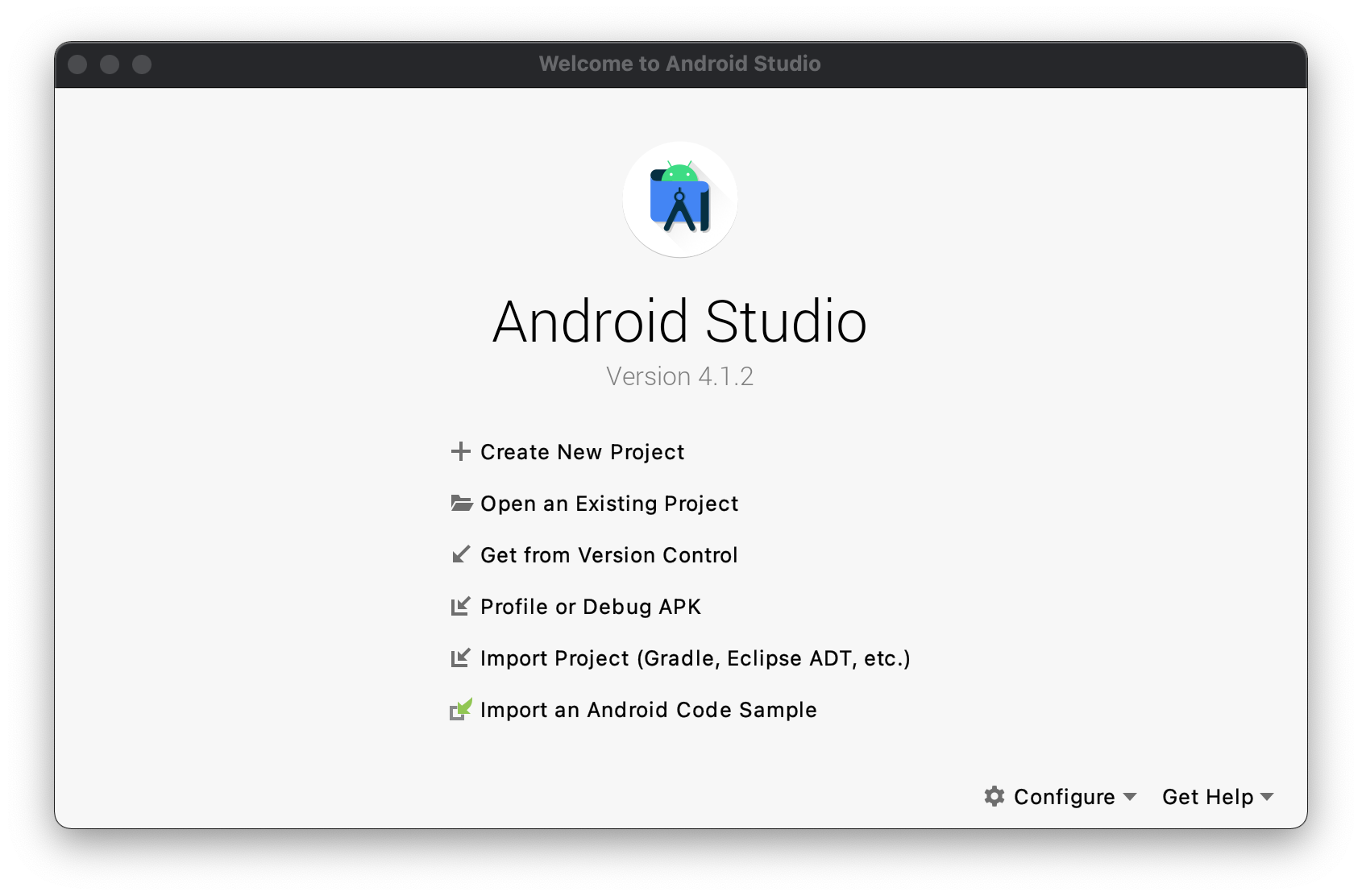

Start by creating a new Android project. Open Android Studio, and select Create New Project.

Screenshot of the Android Studio welcome screen showing the 'Create New Project' option at the top of the list.

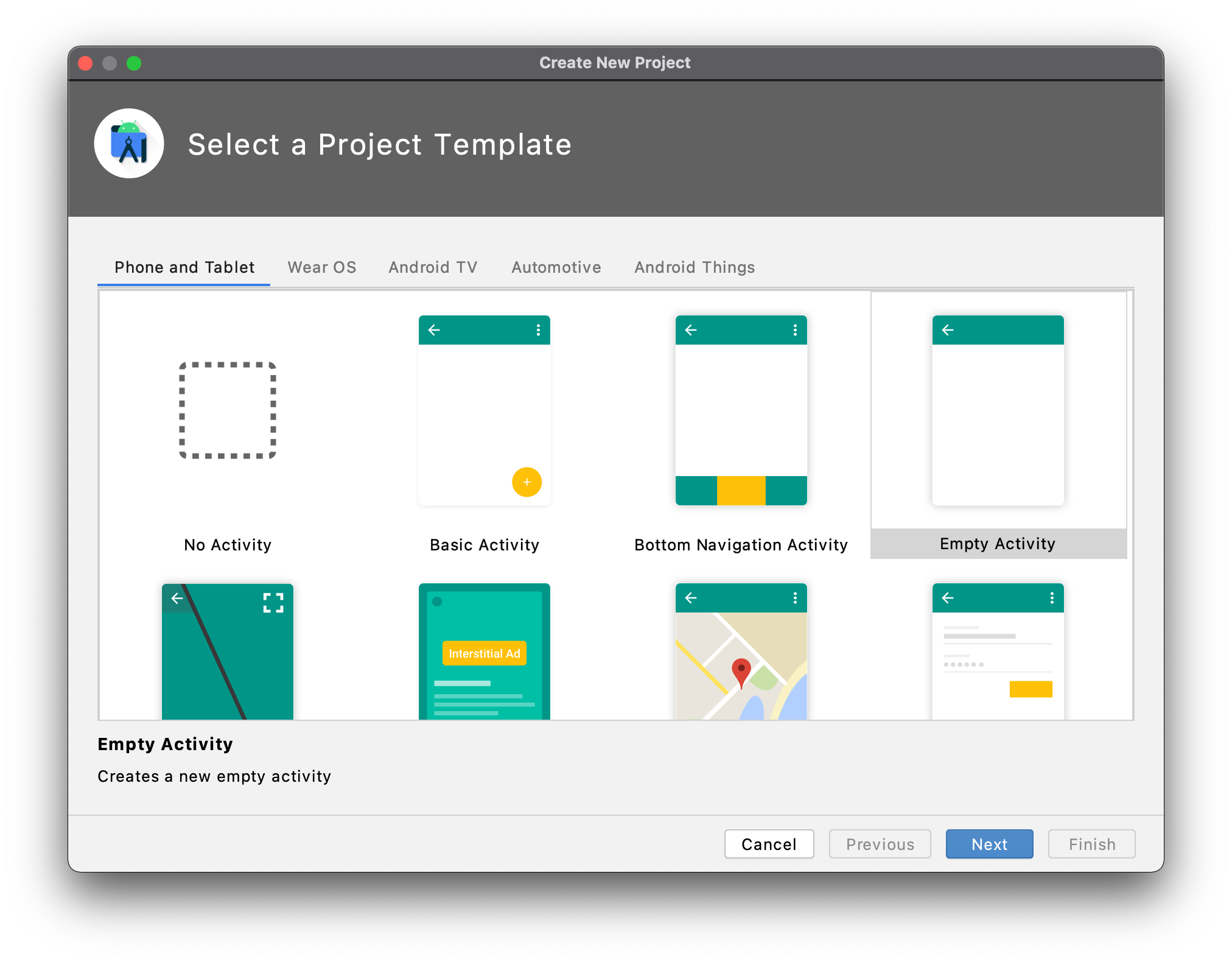

In the Select a Project Template window, select Empty Activity and click Next.

Screenshot of the 'Select a Project Template' screen with activity options like 'Empty Activity' and 'Basic Activity' under 'Phone and Tablet.'

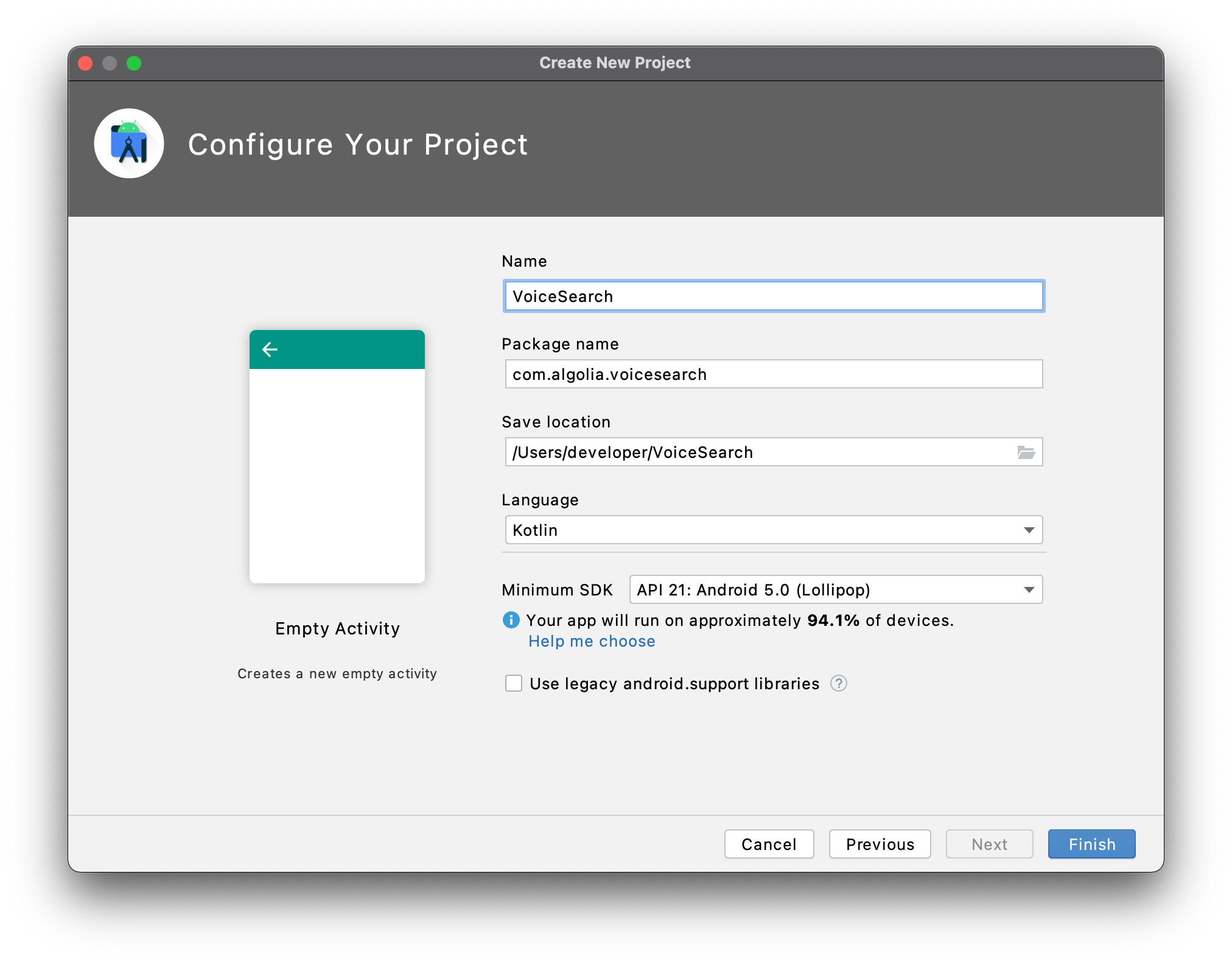

Input the name of your app. Select API 21 as minimum SDK version. Click Finish.

Screenshot of the 'Create New Project' dialog showing the 'Name' field with 'VoiceSearch' entered.

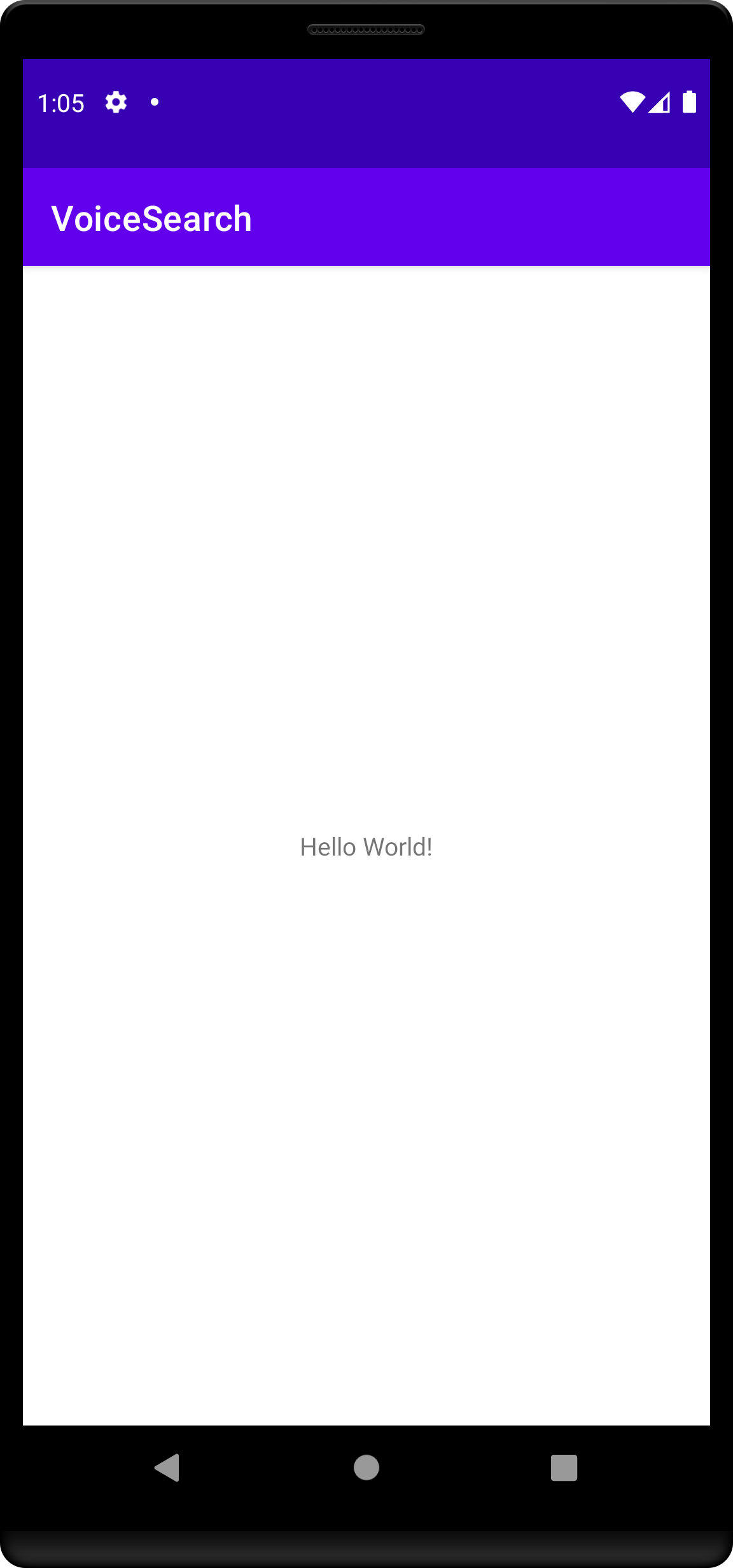

Build and run your app. You should see your app with blank screen.

Add project dependencies

In your build.gradle file at the project level, add mavenCentral() as a dependency repository in the repositories blocks:

groovy

repositories {
    google()
    mavenCentral()
}

In your build.gradle file under app module, add the following in the dependencies block:

groovy

implementation 'com.algolia:instantsearch-android:4.+'
implementation 'com.algolia.instantsearch:voice:1.+'

To perform network operations in your app, AndroidManifest.xml must include the following permissions:

XML

<uses-permission android:name="android.permission.INTERNET" />

Setup kotlinx.serialization by adding the serialization plugin to your project’s build.gradle:

groovy

dependencies {
  //...
  classpath "org.jetbrains.kotlin:kotlin-serialization:$kotlin_version"
}

Add serialization plugin to the plugins block to your app’s build.gradle:

gradle

plugins {
  // ...
  id 'kotlinx-serialization'
}

Create a basic search experience

Start by creating a classic search interface with search box and results list. First, create a layout file called list_item.xml under res/layout/. Add a TextView to display a hit:

XML

<com.google.android.material.card.MaterialCardView xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="?attr/listPreferredItemHeightSmall"
    android:layout_marginBottom="0.5dp"
    app:cardCornerRadius="0dp"
    tools:layout_height="50dp">

    <TextView
        android:id="@+id/hit"
        style="@style/TextAppearance.MaterialComponents.Body1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_vertical"
        android:layout_marginHorizontal="16dp"
        android:maxLines="1"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        tools:text="@tools:sample/lorem/random" />

</com.google.android.material.card.MaterialCardView>

Update your layout file activity_main.xml to have a minimal set of components for a basic search experience:

SearchView: view for textual query input
RecyclerView: the list of search results

XML

<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <androidx.appcompat.widget.SearchView
        android:id="@+id/searchView"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:background="@color/white"
        android:elevation="6dp"
        app:iconifiedByDefault="false"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:queryBackground="@android:color/transparent"
        app:queryHint="Search for products"
        app:voiceIcon="@drawable/ic_microphone" />

    <androidx.recyclerview.widget.RecyclerView
        android:id="@+id/hits"
        android:layout_width="0dp"
        android:layout_height="0dp"
        app:layoutManager="LinearLayoutManager"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/searchView"
        tools:itemCount="100"
        tools:listitem="@layout/list_item" />

</androidx.constraintlayout.widget.ConstraintLayout>

The view is ready, it’s time to work on the search logic. Create a new class Product to hold search results:

Kotlin

import com.algolia.instantsearch.core.Indexable

@Serializable
data class Product(override val objectID: String, val name: String) : Indexable

Create a new class ProductAdapter to render search results:

Kotlin

class ProductAdapter : ListAdapter<Product, ProductAdapter.ProductViewHolder>(ProductAdapter),
  HitsView<Product> {

  override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): ProductViewHolder {
      val view = LayoutInflater.from(parent.context).inflate(R.layout.list_item, parent, false)
      return ProductViewHolder(view)
  }

  override fun onBindViewHolder(holder: ProductViewHolder, position: Int) {
      val product = getItem(position)
      if (product != null) holder.bind(product)
  }

  override fun setHits(hits: List<Product>) {
      submitList(hits)
  }

  companion object : DiffUtil.ItemCallback<Product>() {
      override fun areItemsTheSame(oldItem: Product, newItem: Product): Boolean {
          return oldItem.objectID == newItem.objectID
      }

      override fun areContentsTheSame(oldItem: Product, newItem: Product): Boolean {
          return oldItem == newItem
      }
  }

  class ProductViewHolder(view: View) : RecyclerView.ViewHolder(view) {

      private val hit = view.findViewById<TextView>(R.id.hit)

      fun bind(product: Product) {
          hit.text = product.name
      }
  }
}

In your MainActivity use the SearchBox and Hits widgets:

Kotlin

class MainActivity : AppCompatActivity() {

    val searcher = HitsSearcher(
        applicationID = "latency",
        apiKey = "1f6fd3a6fb973cb08419fe7d288fa4db",
        indexName = "instant_search"
    )
    val searchBox = SearchBoxConnector(searcher, searchMode = SearchMode.AsYouType)
    val connection = ConnectionHandler(searchBox)

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        // Setup SearchBox widget
        val searchView = findViewById<SearchView>(R.id.searchView)
        val searchBoxView = SearchBoxViewAppCompat(searchView)
        connection += searchBox.connectView(searchBoxView)
        // Setup Hits widget
        val hits = findViewById<RecyclerView>(R.id.hits)
        val productAdapter = ProductAdapter()
        hits.adapter = productAdapter
        connection += searcher.connectHitsView(productAdapter) { response ->
            response.hits.deserialize(Product.serializer())
        }
        // Initial search
        searcher.searchAsync()
    }

    override fun onDestroy() {
        super.onDestroy()
        searcher.cancel()
        connection.clear()
    }
}

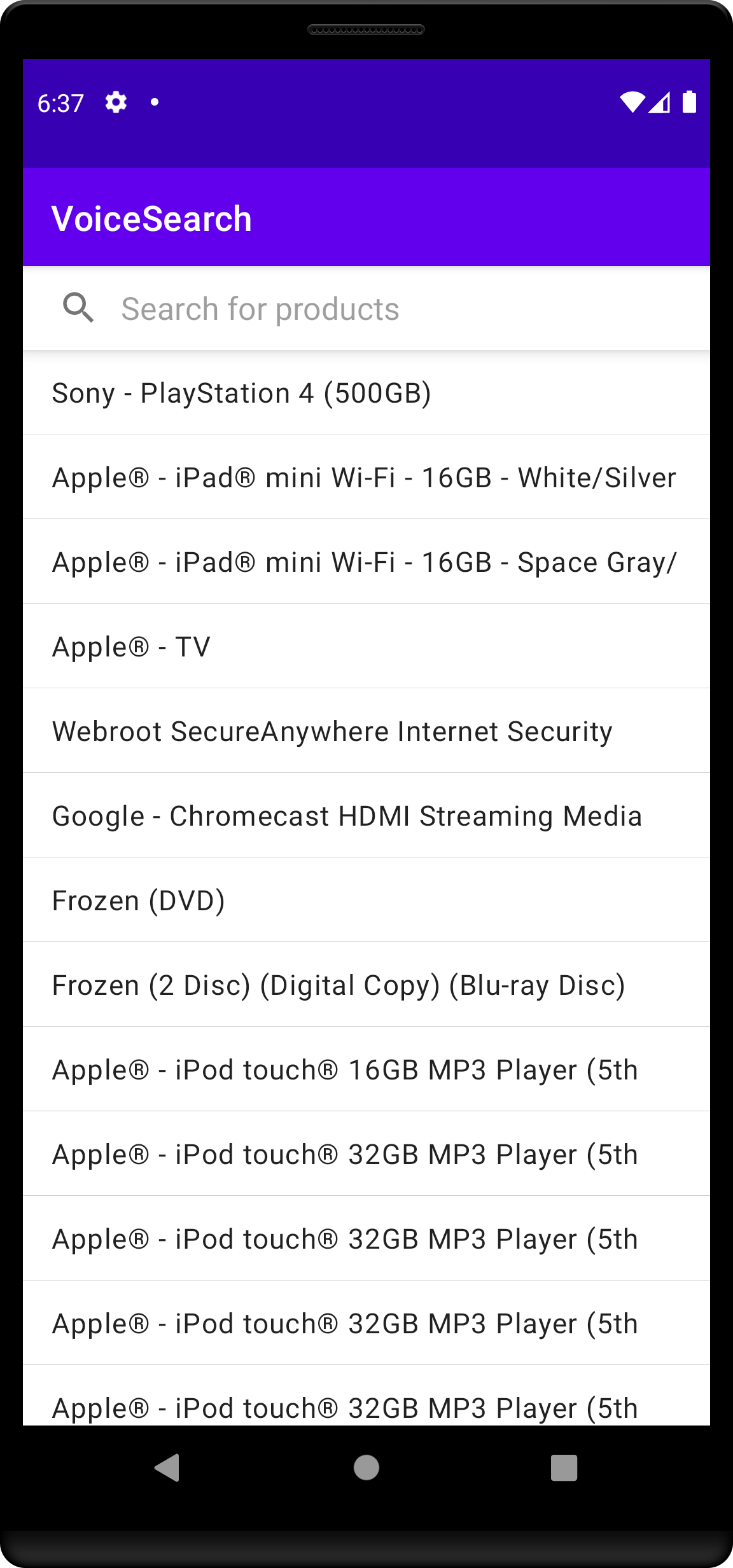

Build and run your app. The basic search experience is ready: you can type your search query and get instant results.

Create a voice search experience

To integrate voice search:

Setup audio permissions

Add RECORD_AUDIO permission to AndroidManifest.xml file:

XML

<uses-permission android:name="android.permission.RECORD_AUDIO"/>

Add voice input UI

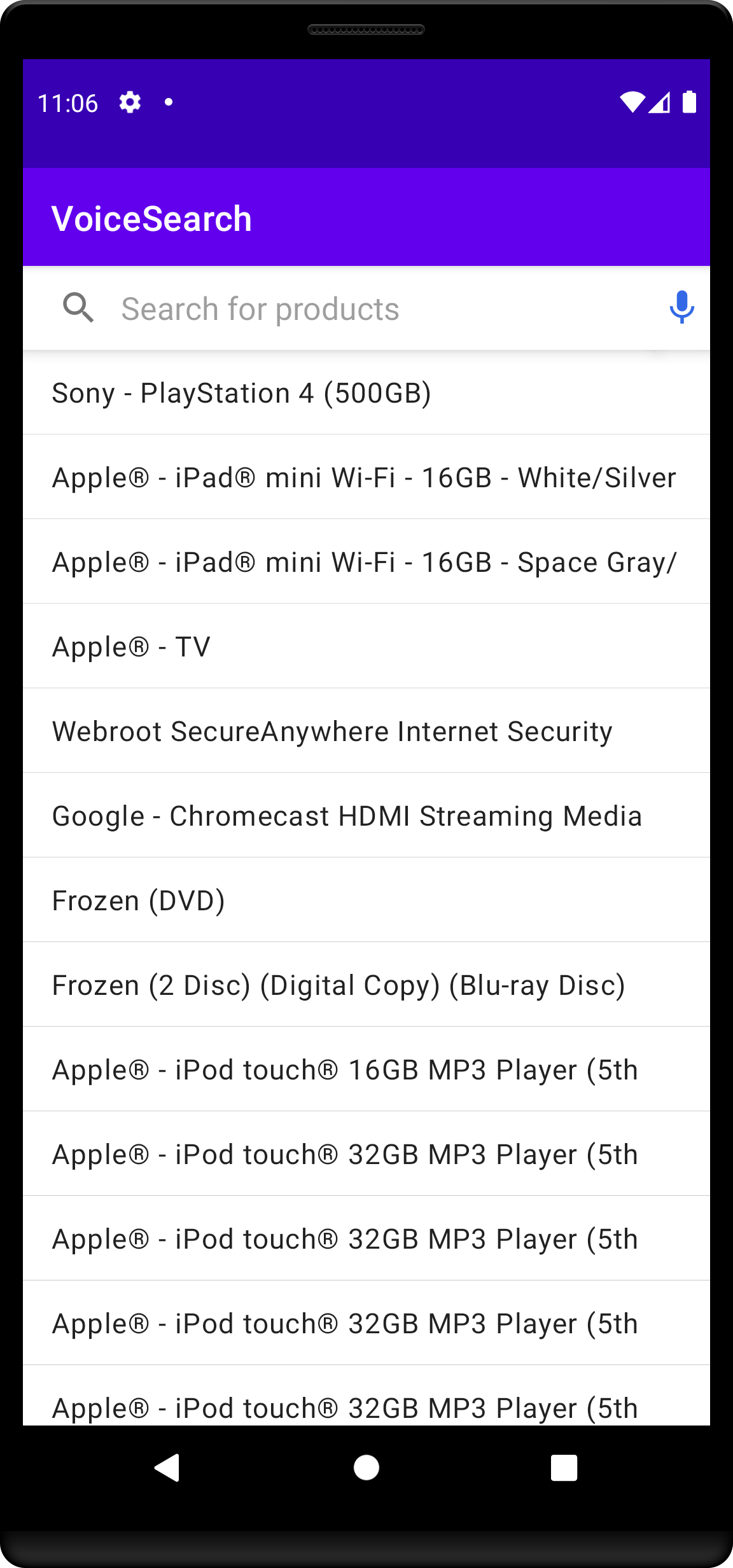

Change activity_main.xml to add the new voice input button to the existing UI. The updated layout file should look as follows:

XML

<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <androidx.appcompat.widget.SearchView
        android:id="@+id/searchView"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:background="@color/white"
        android:elevation="6dp"
        android:focusable="false"
        app:iconifiedByDefault="false"
        app:layout_constraintEnd_toStartOf="@+id/microphone"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:queryBackground="@android:color/transparent"
        app:queryHint="Search for products"
        app:voiceIcon="@drawable/ic_microphone" />

    <ImageView
        android:id="@+id/microphone"
        android:layout_width="wrap_content"
        android:layout_height="0dp"
        android:background="@color/white"
        android:elevation="6dp"
        android:padding="4dp"
        app:layout_constraintBottom_toBottomOf="@+id/searchView"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintTop_toTopOf="@+id/searchView"
        app:srcCompat="@drawable/ic_microphone"
        app:tint="@color/blue_dark" />

    <androidx.recyclerview.widget.RecyclerView
        android:id="@+id/hits"
        android:layout_width="0dp"
        android:layout_height="0dp"
        app:layoutManager="LinearLayoutManager"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toBottomOf="@+id/searchView"
        tools:itemCount="100"
        tools:listitem="@layout/list_item" />

</androidx.constraintlayout.widget.ConstraintLayout>

Add voice input logic

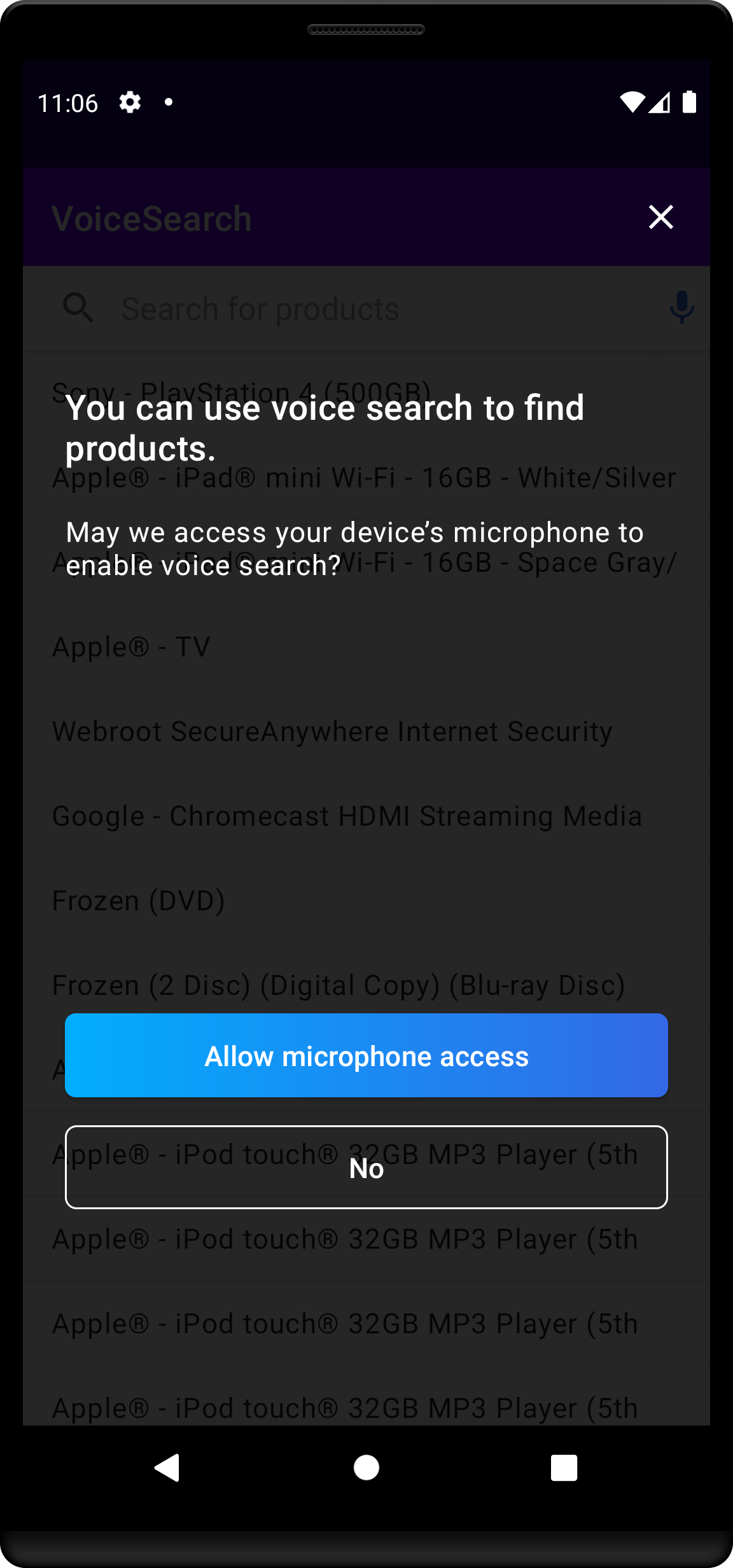

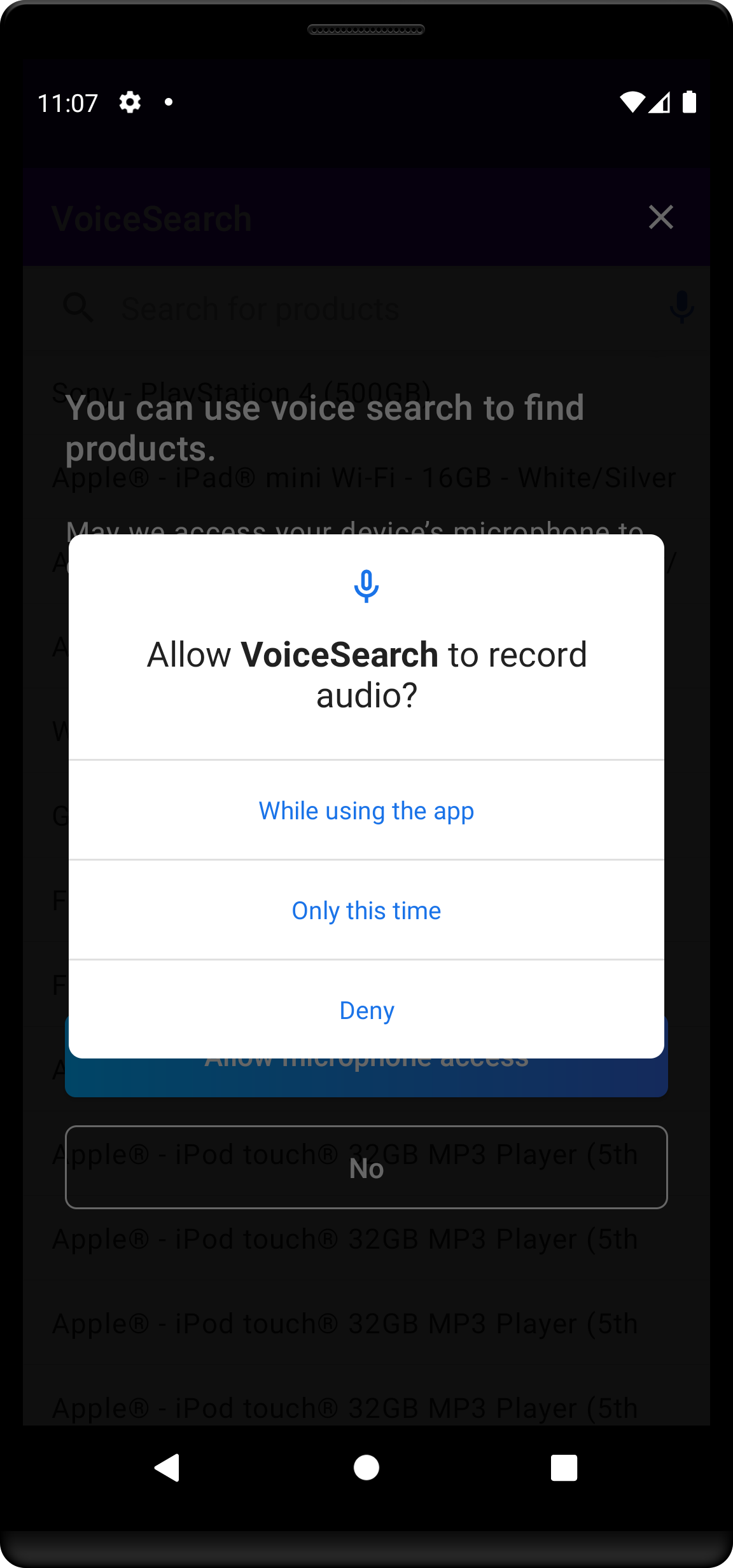

Add a basic implementation of VoiceOverlay:In the click listener, check if you have the audio permission and show the appropriate dialog:

Kotlin

val microphone = findViewById<View>(R.id.microphone)
microphone.setOnClickListener {
    when (isRecordAudioPermissionGranted()) {
        true -> VoiceInputDialogFragment().show(supportFragmentManager, "INPUT")
        false -> VoicePermissionDialogFragment().show(supportFragmentManager, "PERMISSION")
    }
}

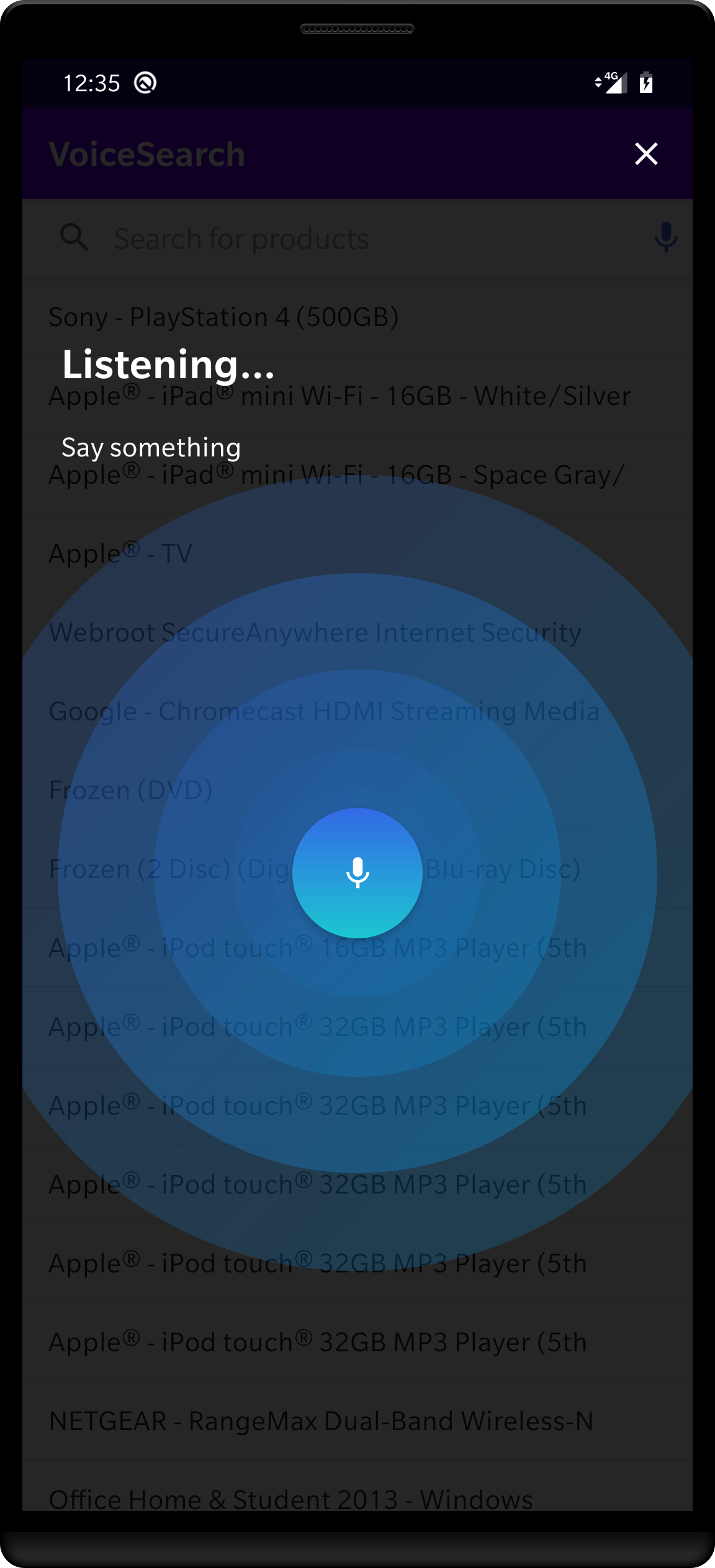

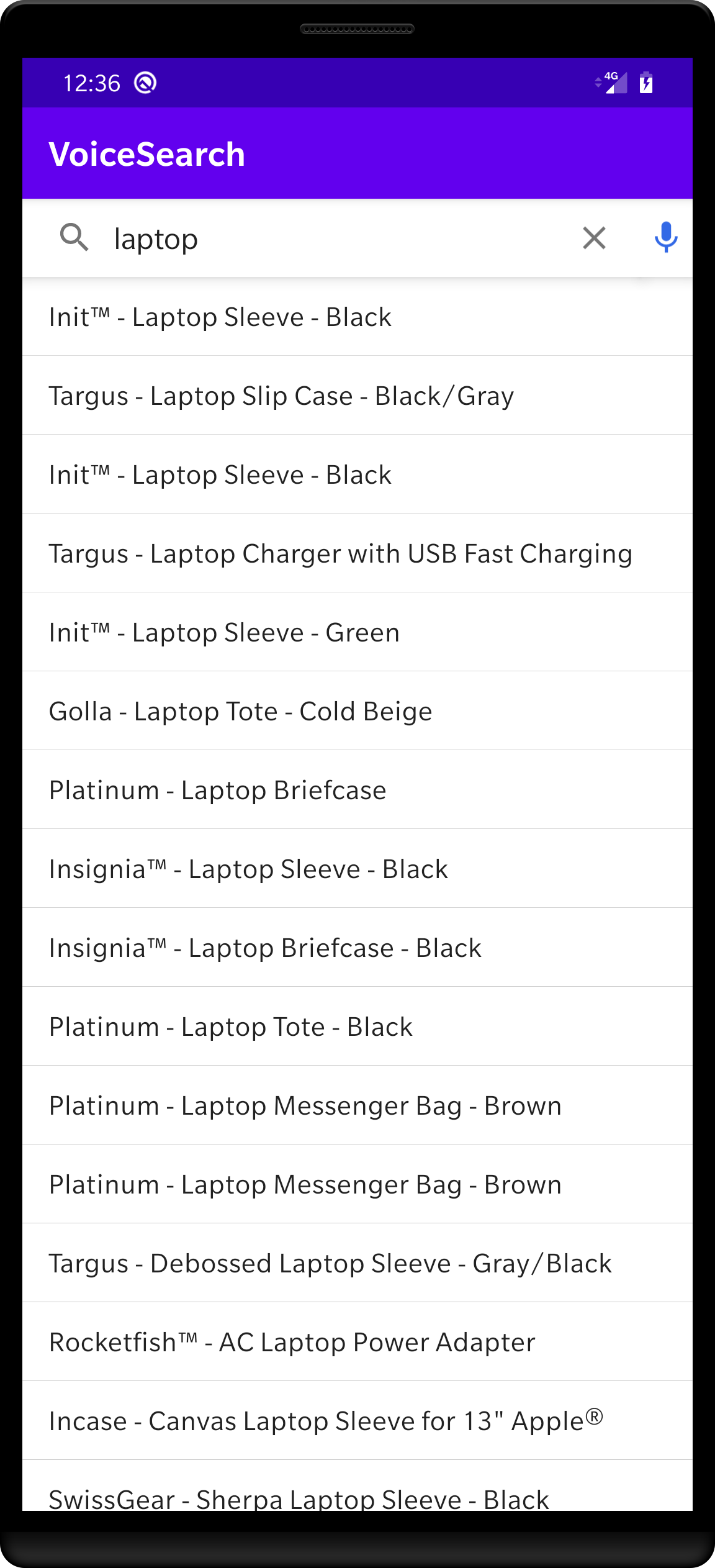

Once the user speaks, you get their input back by implementing VoiceSpeechRecognizer.ResultsListener

Kotlin

class MainActivity : AppCompatActivity(), VoiceSpeechRecognizer.ResultsListener {
    //...
    override fun onResults(possibleTexts: Array<out String>) {
        val searchView = findViewById<SearchView>(R.id.searchView)
        possibleTexts.firstOrNull()?.let { input -> searchView.setQuery(input, true) }
    }
}

In the end, the code of your MainActivity should look as follows:

Kotlin

class MainActivity : AppCompatActivity(), VoiceSpeechRecognizer.ResultsListener {

    val searcher = HitsSearcher(
        applicationID = "latency",
        apiKey = "1f6fd3a6fb973cb08419fe7d288fa4db",
        indexName = "bestbuy"
    )
    val searchBox = SearchBoxConnector(searcher, searchMode = SearchMode.AsYouType)
    val connection = ConnectionHandler(searchBox)

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        // Setup SearchBox widget
        val searchView = findViewById<SearchView>(R.id.searchView)
        val searchBoxView = SearchBoxViewAppCompat(searchView)
        connection += searchBox.connectView(searchBoxView)
        // Setup Hits widget
        val hits = findViewById<RecyclerView>(R.id.hits)
        val productAdapter = ProductAdapter()
        hits.adapter = productAdapter
        connection += searcher.connectHitsView(productAdapter) { response ->
            response.hits.deserialize(Product.serializer())
        }
        // Setup VoiceOverlay
        val microphone = findViewById<View>(R.id.microphone)
        microphone.setOnClickListener {
            when (isRecordAudioPermissionGranted()) {
                true -> VoiceInputDialogFragment().show(supportFragmentManager, "INPUT")
                false -> VoicePermissionDialogFragment().show(supportFragmentManager, "PERMISSION")
            }
        }
        // Initial search
        searcher.searchAsync()
    }

    override fun onResults(possibleTexts: Array<out String>) {
        val searchView = findViewById<SearchView>(R.id.searchView)
        possibleTexts.firstOrNull()?.let { input -> searchView.setQuery(input, true) }
    }

    override fun onDestroy() {
        super.onDestroy()
        searcher.cancel()
        connection.clear()
    }
}

Build and run your app to test your voice search. You should see the voice input button on the right of the search box.

The VoiceOverlay should appear when you tap the voice input button. At the first launch, it asks for the permissions mentioned in the setup audio permission section.

Once you give all the authorizations, the voice input interface appears. Try to say something and get the instant search results.

You can find a complete VoiceOverlay implementation on the git repository.

Conclusion

With Algolia’s libraries, you can build a voice search experience in less than a hundred lines of code. You can customize your search experience and make it unique by modifying InstantSearch components, as well as the VoiceOverlay components.

Search and Discovery platform

Optimization and Personalization

AI-powered experiences

Production and scale

Speech-to-text input layer

Process the query with Algolia

Query time settings

Index configuration

Speech synthesis output

Prepare your project

Create a new Android project

Add project dependencies

Create a basic search experience

Create a voice search experience

Conclusion

Search and Discovery platform

Optimization and Personalization

AI-powered experiences

Production and scale

​Speech-to-text input layer

​Process the query with Algolia

​Query time settings

​Index configuration

​Speech synthesis output

​Prepare your project

​Create a new Android project

​Add project dependencies

​Create a basic search experience

​Create a voice search experience

​Conclusion

Speech-to-text input layer

Process the query with Algolia

Query time settings

Index configuration

Speech synthesis output

Prepare your project

Create a new Android project

Add project dependencies

Create a basic search experience

Create a voice search experience

Conclusion
