Facet bucketing with custom attributes

Replace many similar facet values by fewer common ones to simplify the filtering user experience in Salesforce B2C Commerce.

Facet bucketing refers to the grouping of similar facet values into buckets and representing them by a common value. Listing all the facet values results in lengthy lists in your user interface. Facet bucketing improves the user experience by simplifying the choices when filtering.

With Algolia for Salesforce B2C Commerce, you can implement facet bucketing with custom attributes.

Examples: sizes and colors

Apparel often comes in specific shades like ruby, crimson, scarlet, burgundy, or cherry. Using the color attribute for faceting would result in too many options with potentially few results for each facet value. Instead, you can use the essential color red as attribute for faceting.

Another example is shoe size, where the same sizes can be expressed in multiple formats:

• Letters: S, M, L
• Numerical systems: Mondopoint, EU, UK, US
• Alphanumeric: B10

Instead of using the size attribute for faceting, you can choose common values that represent the same physical sizes.

Create custom attributes for facet bucketing

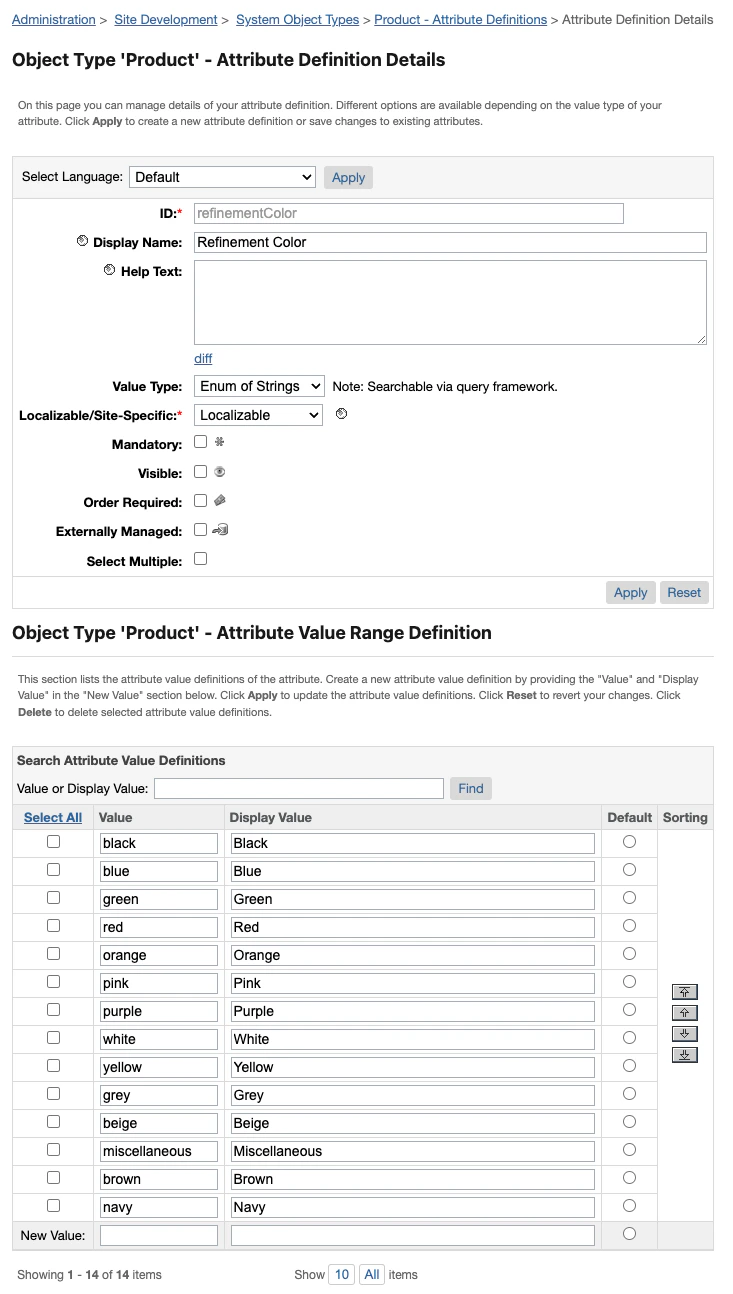

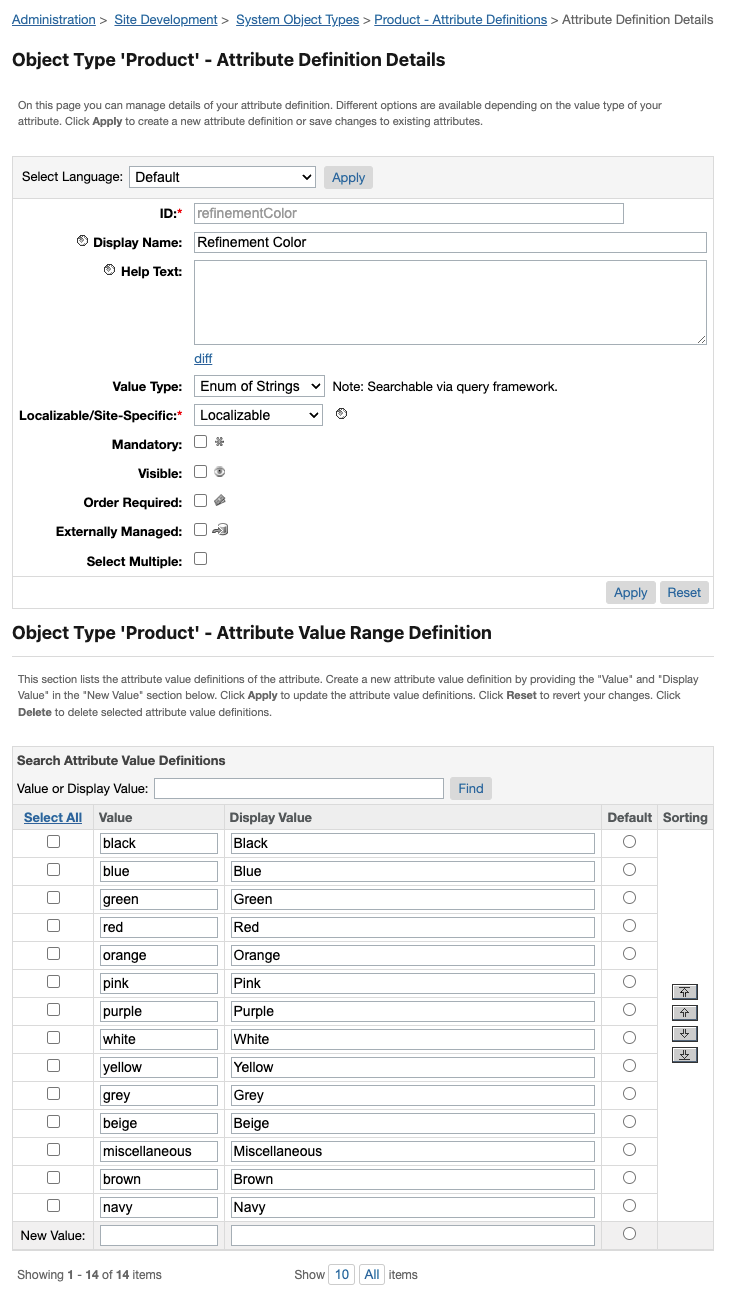

First, create your custom attribute for the Product system object. Go to Business Manager (Administration > Site Development > System Object Types > Product) and select a custom attribute such as refinementColor or refinementSize.

For example, the custom attribute refinementColor has the type enum of string. It has predefined values to choose from, and you can change the list of values. You can select any type supported by Salesforce B2C Commerce.

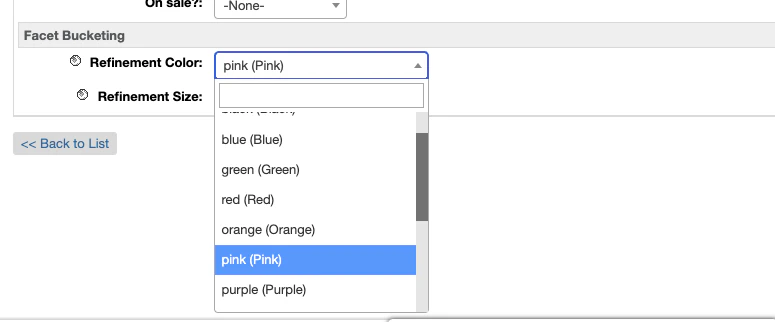

To make faceting work, fill this attribute with a value for all your products that you want to be filterable by this attribute:

Add custom attributes to additional product attributes

Go to the Algolia BM module (BM > Merchant Tools > Algolia > Algolia) and add your custom attribute to the Additional Product Attributes field. Use the pre-configured name if the attribute is part of the configurable attributes or use its full path, such as custom.myCustomAttribute.

To index a complex custom attribute or make transformations before export to Algolia, declare the attribute explicitly.

Create a new refinementList widget

After creating the custom attribute, adding the values to your products, and exporting it to Algolia, you can now create a new refinementList widget to let your users filter the search results based on this new attribute.

Create a new refinementListWithPanel widget in instantsearch-config.js:

JavaScript

refinementListWithPanel({
    container: '#algolia-refinement-color-list-placeholder',
    attribute: 'refinementColor',
    templates: {
        item: ''
            + '<a class="{{cssClasses.link}}" href="{{url}}" style="white-space: nowrap; {{#isRefined}} font-weight: bold; {{/isRefined}}">'
            + '    {{#isRefined}}'
            + '      <i class="fa fa-check-square"></i>'
            + '    {{/isRefined}}'
            + '    {{^isRefined}}'
            + '      <i class="fa fa-square-o"></i>'
            + '    {{/isRefined}}'
            + '    <span class="{{cssClasses.label}}">{{label}}</span>'
            + '</a>',
    },
    panelTitle: algoliaData.strings.colorPanelTitle
}),

Add the placeholder div element for your new widget in the file searchResultsNoDecorator.isml as well.

After adding the new refinementList widget, your users will be able to filter products by the more generic color groups.

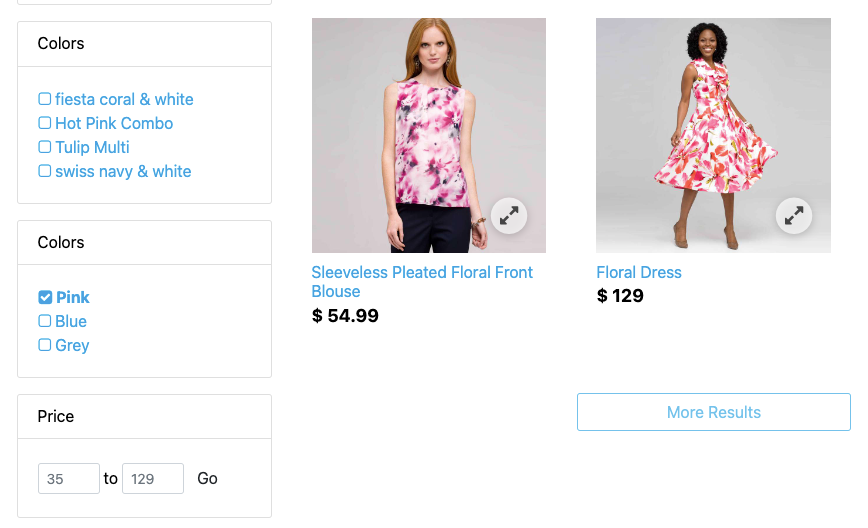

The following example shows a storefront with two filtering options. The first Colors widget (refinementList) lists specific shades and color terms. The second Colors widget (custom.refinementColor) only lists primary colors:
