Autocomplete menu

Customize the features and design of the Algolia Autocomplete menu for Adobe Commerce and Magento Open Source.

The Algolia extension for Adobe Commerce and Magento Open Source uses the Autocomplete UI library to create the menu that appears below the search box. You can find all templates, JavaScript files and style sheets in the directory: vendor/algolia/algoliasearch-magento-2/view/frontend/web.

As a starting point for your customizations, you can download a template.

Concepts

Frontend events let you run functions (hooks) at specific stages in the lifecycle of the autocomplete menu. You can use them to change the structure of your data, its sources, and the configuration options for your autocomplete menu. For more information, see Frontend custom events.

Templates let you control the look of your autocomplete menu with JavaScript template literals.

Basic configuration options

Autocomplete option	Description
placeholder	Text shown in the search box before users type
debug	If true, the Autocomplete menu stays open even if you click outside it
openOnFocus	If true, the Autocomplete menu displays as soon as a user clicks on the search input field

To change the autocomplete options, use the afterAutocompleteOptions hook. For example:

JavaScript

algolia.registerHook("afterAutocompleteOptions", function (options) {
  // Add or modify options, then return them
  options.debug = true;
  return options;
});

Sources

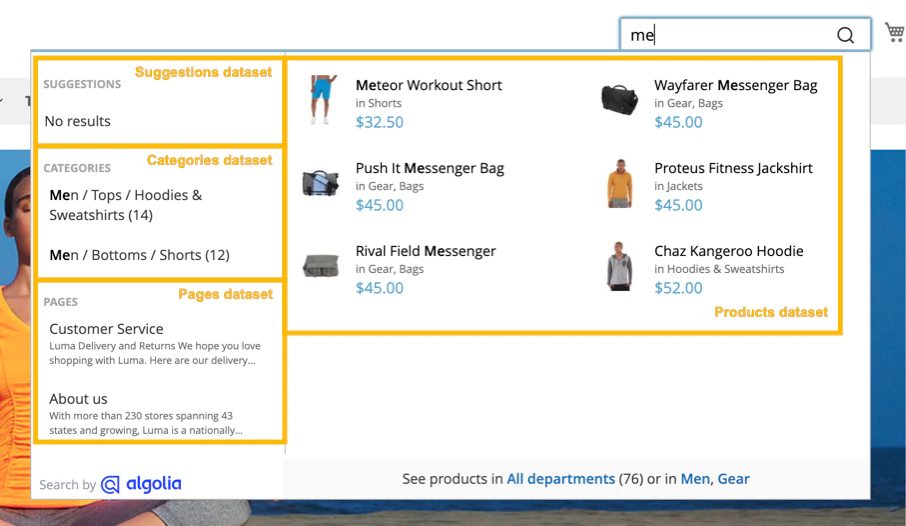

Sources provide the data for items that your users can search for in the autocomplete menu. Specifying multiple sources lets you create a federated search experience.

The Algolia extension comes with default sources. To change them, go to Stores > Configuration > Algolia Search > Autocomplete in your Magento Admin. You can select these sources:

Autocomplete source	Description
products	Products from your catalog
categories	Product categories
pages	Pages
suggestions	Suggestions from popular searches
additional_sections	Additional sections you configured in the Magento Admin

Add new sources

To add new sources to the autocomplete menu or change existing ones, use the afterAutocompleteSources hook.

The callback function for afterAutocompleteSources must return the complete sources array.

For example:

JavaScript

algolia.registerHook(
  "afterAutocompleteSources",
  function (sources, algoliaClient) {
    // Add or modify sources, then return them
    return sources;
  },
);

The callback for afterAutocompleteSources accepts two parameters:

Parameter	Type	Description
sources	Array of sources	Data for autocomplete items
searchClient	Search client	Initialized Algolia search client

If you need access to other objects, such as algoliaAnalytics, use RequireJS to define them as dependency for your algoliaHooks implementation.

Sources data structure

A minimal configuration for your source object might look like the following:

JavaScript

{
  sourceID: 'my-custom-source',
  indexName: 'my_custom_index',
  templates: {
    item({item, html}) {
      return html`<a href="${item.url}">${item.title}</a>`;
    }
  }
}

Each source in the sources array is a JavaScript object with the following properties:

Property	Type	Required	Description
sourceID	String	Required	Unique identifier for your source. Use a sourceID of a built-in source to override it.
indexName	String	Required	Index name. It’s records will be searchable in the autocomplete menu. To reference a Magento store index, use algoliaConfig.indexName as prefix.
templates	Autocomplete templates	item template is required	Templates for rendering items (item), no-results display (noResults), a header (header), and footer (footer).
getItemUrl	function		Function to return the URL for an item for keyboard navigation.
transformResponse	function		Function to transform the response from the Algolia API before turning it to Autocomplete items. For more information, see getAlgoliaResults.
options	Search parameters	Add or override Algolia search parameters, such as the hitsPerPage parameter.

Examples

The following example hook adds a new source:

JavaScript

algolia.registerHook(
  "afterAutocompleteSources",
  function (sources, searchClient) {
    // Add new source to the sources array
    sources.push({
      sourceID: "my-custom-source",
      // Use `algoliaConfig.indexName` to get the index prefix by store scope
      indexName: algoliaConfig.indexName + "_my_custom_index",
      // Add search parameter
      options: { hitsPerPage: 3 },
      templates: {
        // Template for the menu when no results are found
        noResults() {
          return "No results found";
        },
        // Template for a custom header displayed before all items of this source
        header() {
          return "Custom source example";
        },
        // Template for each autocomplete item
        item({ item, html }) {
          return html`<a class="aa-ItemLink" href="${item.url}"
            >${item.title}</a
          >`;
        },
      },
    });

    // Return the complete sources array
    return sources;
  },
);

The following example changes an existing source:

JavaScript

algolia.registerHook(
  "afterAutocompleteSources",
  function (sources, searchClient) {
    // Modify the "pages" source
    const pages = sources.find(source => source.sourceID === 'pages');
    pages.transformResponse = ({ hits }) => {
      // Do something with the hits returned by this source
      return hits;
    };
    return sources;
}

Plugins

Plugins extend Autocomplete---for example, by adding new sources. The Magento extension includes the Query Suggestions plugin. This plugin shows popular searches in your autocomplete menu as search suggestions.

To add new plugins or change existing ones, use the afterAutocompletePlugins hook.

For example, to add recent searches to your autocomplete menu:

JavaScript

algolia.registerHook('afterAutocompletePlugins', (plugins, searchClient) => {
  const recentSearchesPlugin = algoliaRecentSearches.createLocalStorageRecentSearchesPlugin({
      key: 'navbar',
      transformSource({source}) {
          return {
              ...source,
              templates: {
                  ...source.templates,
                  header: () => 'Recent searches',
                  item: ({item, html}) => {
                      return html`<a class="aa-ItemLink" href="${algoliaConfig.resultPageUrl}?q=${encodeURIComponent(item.label)}">${item.label}</a>`;
                  }
              }
          }
      }
  });

  plugins.push(recentSearchesPlugin);

  return plugins;
}

Click events

When a user selects an item in the menu, Autocomplete sends a click event. To track custom events, see Custom frontend events.

Keyboard navigation

Keyboard navigation is available in the Algolia extension for Magento Open Source and Adobe Commerce version 3.9.2 or later.

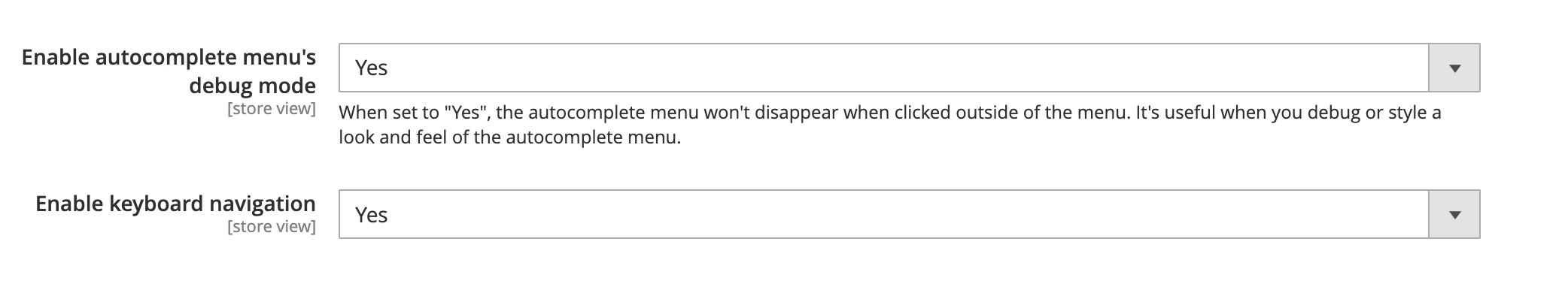

To turn off keyboard navigation, go to Stores > Configuration > Algolia Search > Enable keyboard navigation in the Magento Admin. By default, keyboard navigation is turned on.

Autocomplete implements the WAI-ARIA combobox pattern.

Autocomplete menu templates

When updating templates, keep the changes in your theme directory. Avoid editing the theme files in the extension directory. Follow theme development best practices.

To change the appearance of the autocomplete menu, override these templates in your theme:

Template file	Description
autocomplete.phtml	Autocomplete menu
products.js	Products
categories.js	Categories
pages.js	Pages
suggestions.js	Search suggestions
additional-section.js	Additional sections

You can find all template files in the web/js/template/autocomplete/ directory.

JavaScript mixins with RequireJS

Mixins let you change the rendering of specific parts of a template without having to override the entire file.

To do this, create a requirejs-config.js file in your theme or custom module:

JavaScript

var config = {
  config: {
    mixins: {
      "Algolia_AlgoliaSearch/js/template/autocomplete/products": {
        "Algolia_CustomAlgolia/js/template/autocomplete/products-mixin": true,
      },
    },
  },
};

The following mixin example adds the product’s SKU to each product in the autocomplete menu. It overrides the getItemHtml function, leaving other aspects unchanged.

JavaScript

// products-mixin.js
define(function () {
  "use strict";

  const mixin = {
    getItemHtml: function ({ item, components, html }) {
      return html`<a
        class="algoliasearch-autocomplete-hit"
        href="${item.__autocomplete_queryID != null
          ? item.urlForInsights
          : item.url}"
      >
        <div class="thumb">
          <img src="${item.thumbnail_url || ""}" alt="${item.name || ""}" />
        </div>
        <div class="info">
          ${components.Highlight({ hit: item, attribute: "name" })}

          <!-- BEGIN SAMPLE CUSTOMIZATION -->
          <!-- (Adding SKU to Autocomplete HTML output) -->
          <div class="sku">${item.sku}</div>
          <!-- END SAMPLE CUSTOMIZATION -->

          <div class="algoliasearch-autocomplete-category">
            ${this.getColorHtml(item, components, html)}
            ${this.getCategoriesHtml(item, components, html)}
          </div>

          ${this.getPricingHtml(item, html)}
        </div>
      </a>`;
    },
  };

  return function (target) {
    return { ...target, ...mixin };
  };
});

To only change specific aspects, you can create mixins for methods such as getColorHtml or getCategoriesHtml without editing the getItemHtml function.

Customization with wrappers

You can also extend templates with Magento’s mage/utils/wrapper JavaScript module. Wrappers let you invoke the original template function and include its output with the _super method.

The following example overrides the getHeaderHtml method of the Autocomplete category hit template:

Javascript

// SAMPLE CATEGORIES MIXIN
define(["mage/utils/wrapper"], function (wrapper) {
  "use strict";

  return function (template) {
    template.getHeaderHtml = wrapper.wrapSuper(
      template.getHeaderHtml,
      function (args) {
        const orig = this._super(args);
        return `${orig}: This category template was customized!`;
      },
    );
    return template;
  };
});

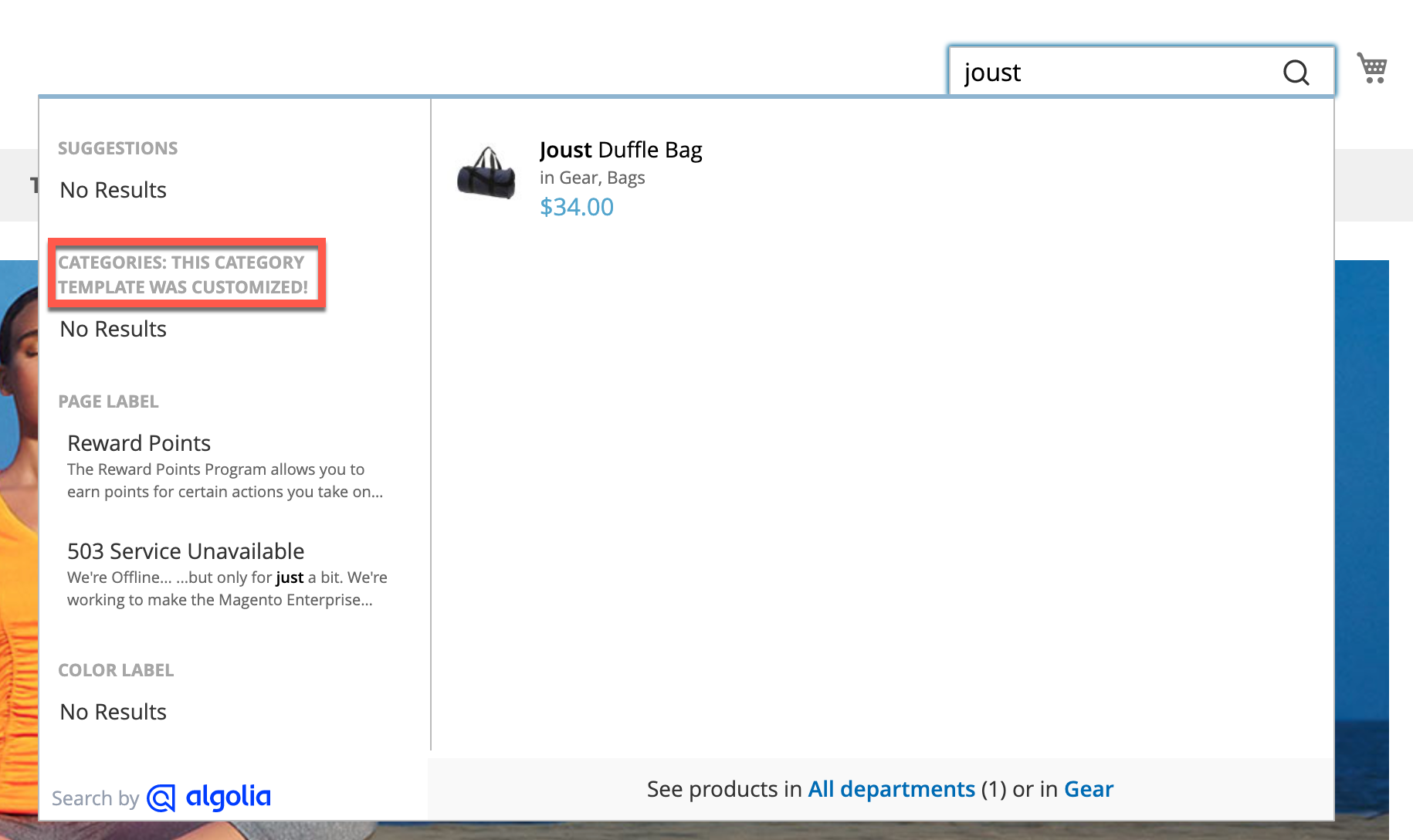

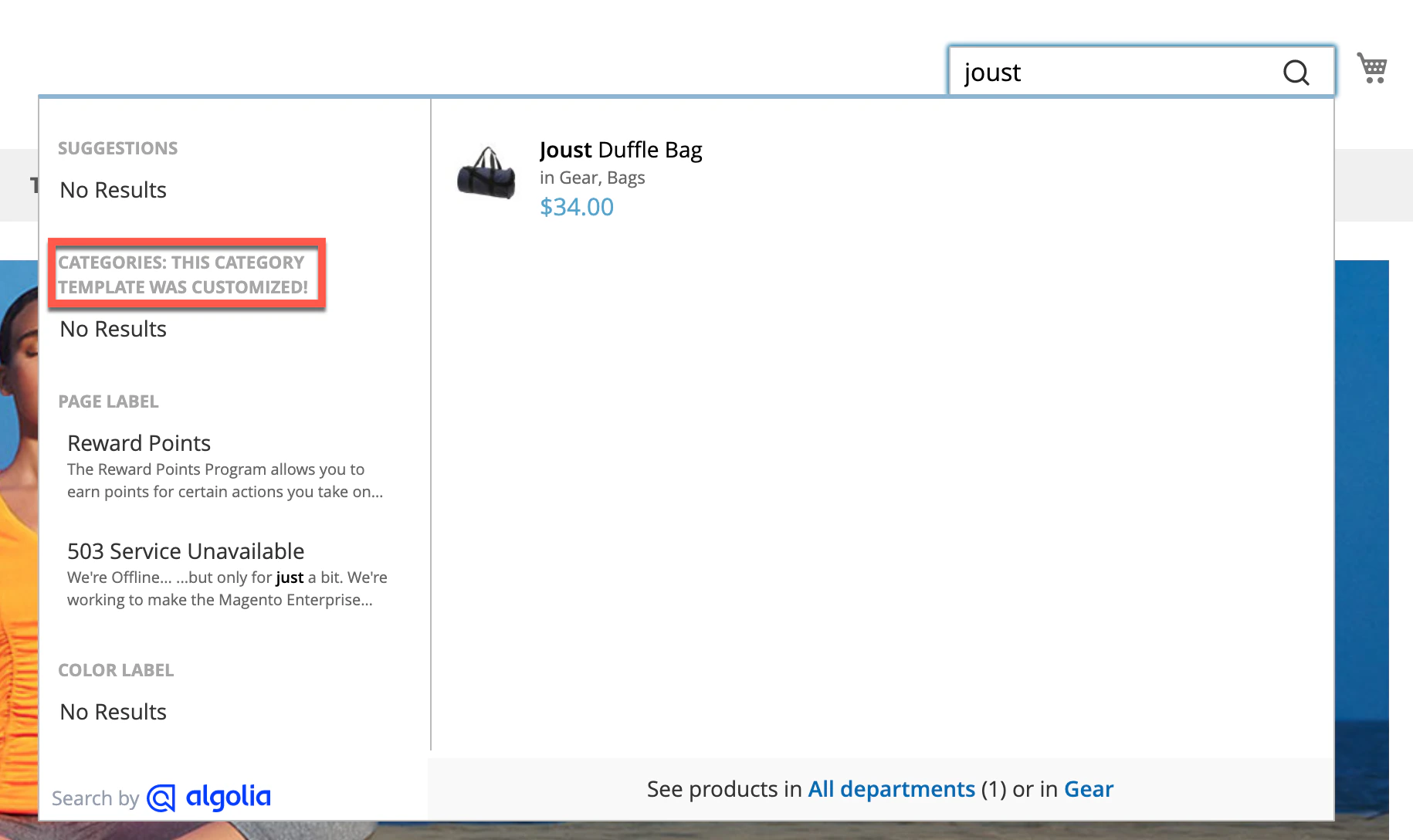

This renders the following results:

For more information, see JavaScript mixins in the Adobe Commerce documentation.

Custom Algolia module

To help you build your mixins faster, try the Algolia_CustomAlgolia extension which installs a set of starter templates for your customizations.

For more information, see Create a custom extension.

Styling

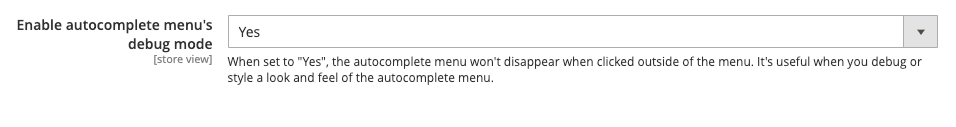

To keep the autocomplete menu open when making changes, turn on the debug mode. To enable the debug mode, go to Stores > Configuration > Algolia Search > Autocomplete > Enable autocomplete menu’s debug mode.

Debouncing

Debouncing delays sending a search request until after a brief pause after the last keystroke. This removes instant feedback for users, but also leads to fewer API requests and UI changes. This might help users who prefer reduced motion.

To adjust the debounce settings, go to Stores > Configuration > Algolia Search > Autocomplete in the Magento Admin.

Debounce requests

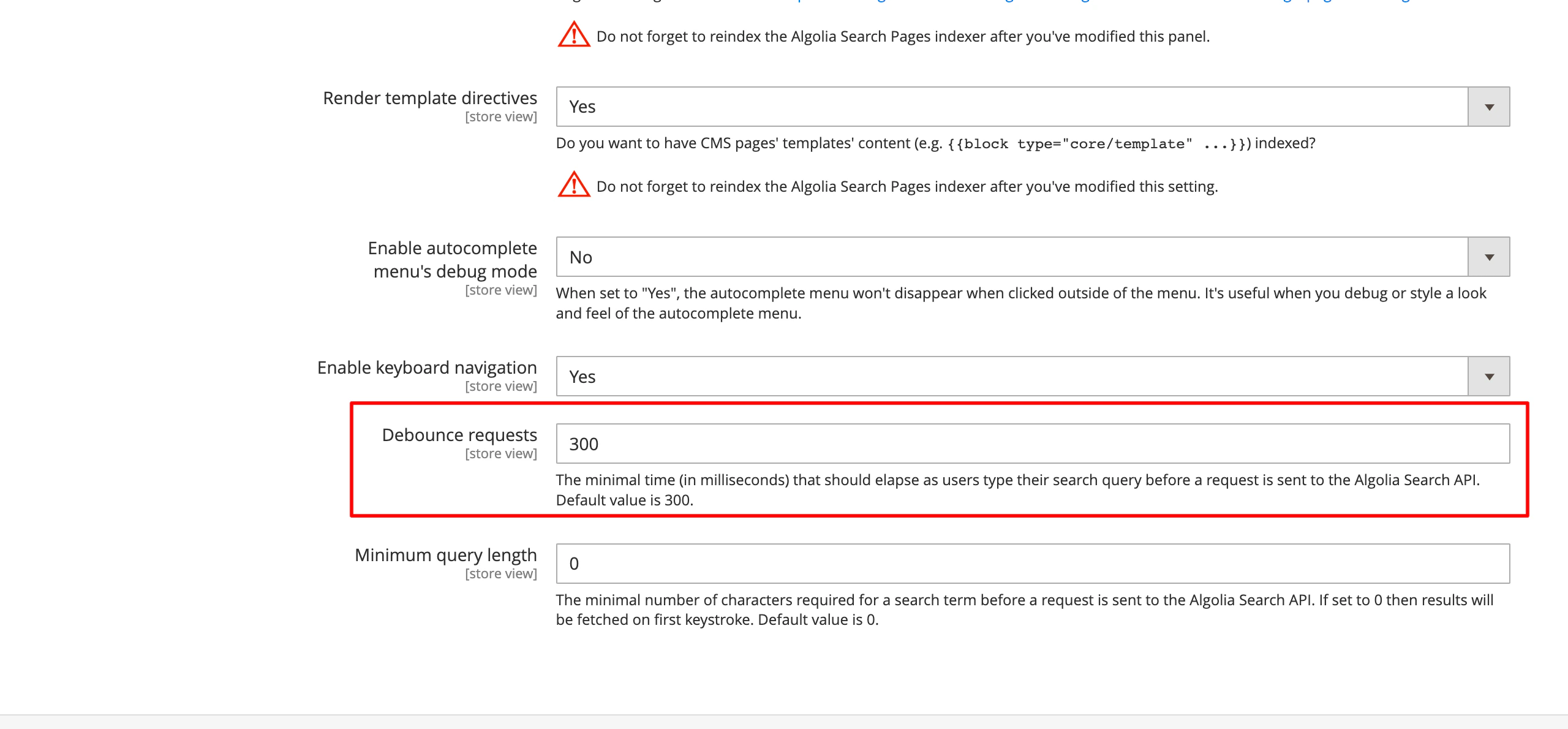

The Debounce requests setting defines the delay after the last keystroke before triggering a search. By default, a search is triggered 300 milliseconds after the last keystroke.

Minimum query length

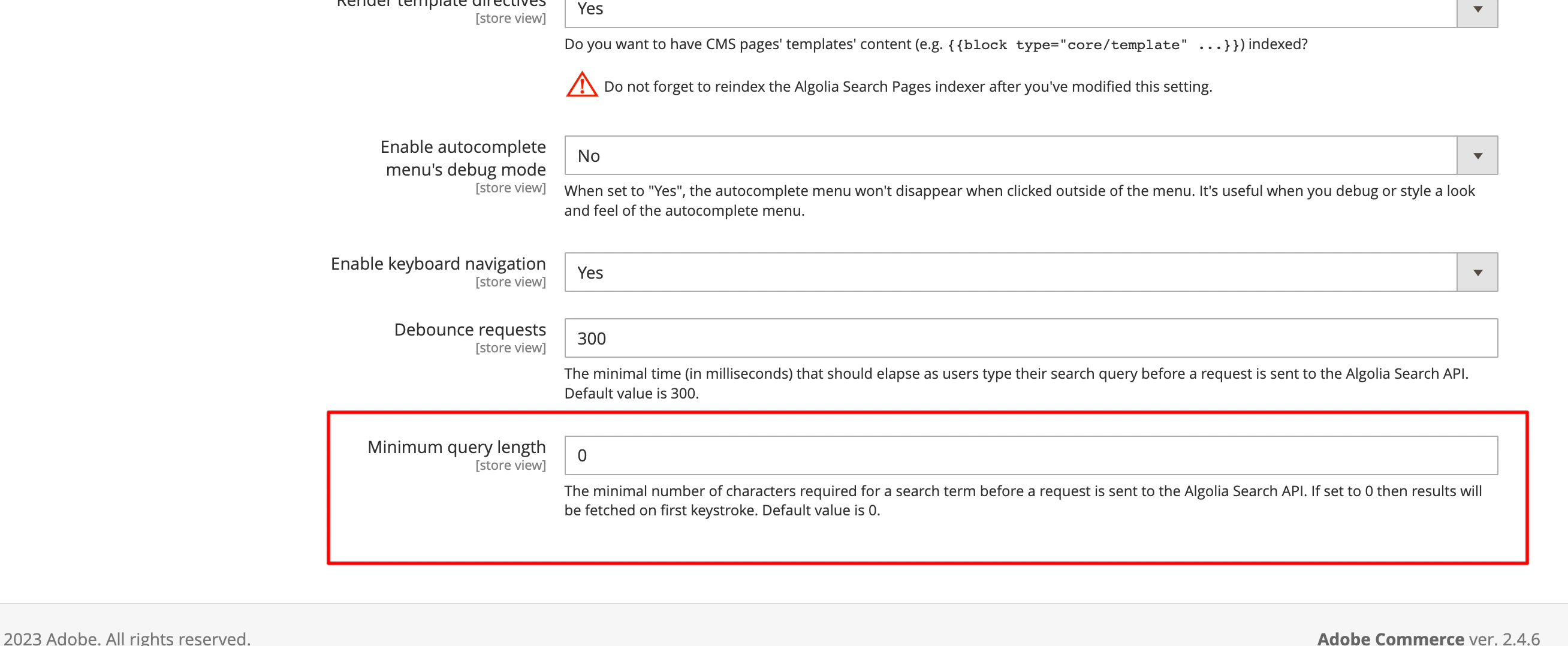

The Minimum query length setting defines how many characters users have to enter before triggering a search. If you set it to 0, searches are triggered from the first keystroke.

Custom theme

By default, the extension overrides the topSearch block of the template. If you’re using a custom theme without the topSearch block, update the DOM selector for the search input.

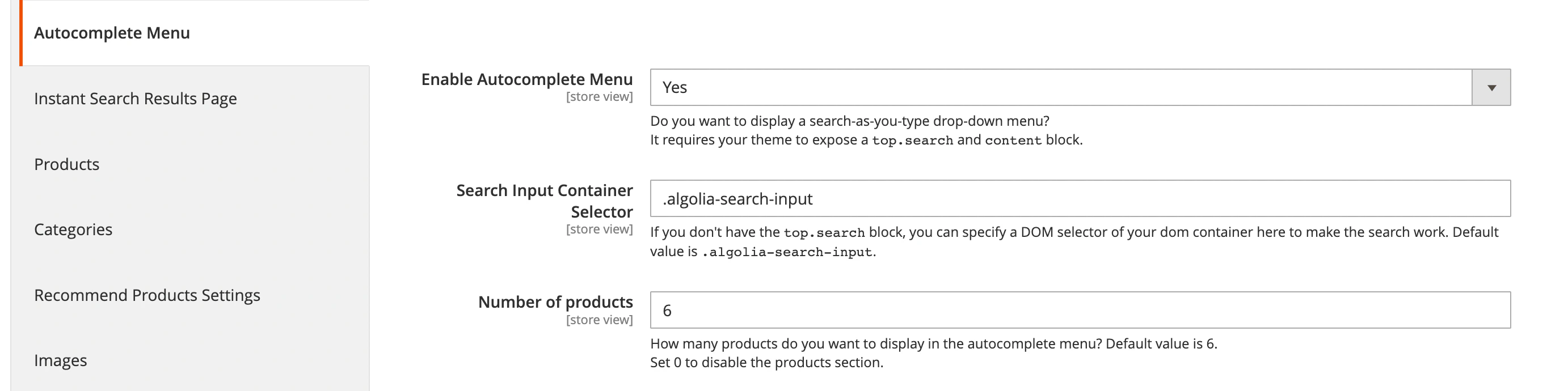

Go to Stores > Algolia Search > Autocomplete Menu in the Magento Admin, and change the Search Input Container Selector setting:

Console error after reindexing

If you see the “Cannot read property ‘autocomplete’ of undefined” error after reindexing, this indicates the extension’s templates weren’t rendered.

1. Since the templates are rendered into the before_body_end block, ensure the theme renders this block.
2. If the block is rendered, confirm that symlinks are enabled in Magento’s configuration.

Enable this in the administration section by going to System > Configuration > Advanced > Developer.
